Download Gelmariner
catalog
 pdf
| Cat. No. |
Model |
DNA & Protein separation |
RNA separation |
Ports for buffer circulation |
Gel Size
(cm) |
Unit |
Image |
| THGMR-001015 |
Gelmariner |
Yes |
✖ |
✖ |
10 (w) x 15 (l) |
1 pc |
Image |
| THGMR-R01015 |
Gelmariner-R |
Yes |
Yes |
✖ |
10 (w) x 15 (l) |
1 pc |
Image |
| THGMR-RC1015 |
Gelmarienr-RC |
Yes |
Yes |
Yes |
10 (w) x 15 (l) |
1 pc |
Image |
| For list of components given along with the ready-to-use system please refer to page Gelmariner |
Accessories for Gelmariner
Gel trays
For Tray and Comb selection also refer to Gelmariner Trays and Combs.
| Cat No. |
Gel width |
Gel length |
Opaque/ UVT |
Gel gripping |
Unit |
Image |
| THGMS-T01005 |
10 cm |
5 cm |
UV-Opaque |
No |
Piece |
 |
| THGMS-TU1005 |
UV-Transparent |
Yes |
Piece |
 |
| THGMS-T01010 |
10 cm |
UV-Opaque |
No |
Piece |
 |
| THGMS-TU1010 |
UV-Transparent |
Yes |
Piece |
 |
| THGMS-T01015 |
15 cm |
UV-Opaque |
No |
Piece |
 |
| # THGMS-TU1015 |
UV-Transparent |
Yes |
Piece |
 |
| THGMS-T01020 |
20 cm |
UV-Opaque |
No |
Piece |
 |
| THGMS-TU1020 |
UV-Transparent |
Yes |
Piece |
 |
| 08-02051 |
7 cm |
5 cm |
UV-opaque |
No |
Piece |
 |
| 08-02052 |
UV-Transparent |
Yes |
Piece |
 |
| 08-02101 |
10 cm |
UV-Opaque |
No |
Piece |
 |
| 08-02102 |
UV-Transparent |
Yes |
Piece |
 |
| 08-02151 |
15 cm |
UV-Opaque |
No |
Piece |
 |
| 08-02151 |
UV-Transparent |
Yes |
Piece |
 |
| 08-03104 |
3 cm |
10 cm |
UV-Transparent |
Yes |
Piece |
 |
# Std. tray with Gelmariner, ready-to-use systems
Combs
For Tray and Comb selection also refer to Gelmariner Trays and Combs.
| Cat No. |
Fits tray of width |
No. of wells |
Well width |
Comb thickness |
Loading volume* |
Image |
| THGMS-CM0071 |
10 cm |
7 wells |
10.5 mm |
1.0 mm |
47 uL |
 |
| THGMS-CM0072 |
1.5 mm |
70 uL |
| THGMS-CM0073 |
2.0 mm |
94 uL |
| THGMS-CM0101 |
10 wellsMP |
6.0 mm |
1.0 mm |
27 uL |
 |
| THGMS-CM0102 |
1.5 mm |
40 uL |
| THGMS-CM0103 |
2.0 mm |
54 uL |
| THGMS-CM0151 |
15 wells |
4.2 mm |
1.0 mm |
18 uL |
 |
| # THGMS-CM0152 |
1.5 mm |
28 uL |
| THGMS-CM0153 |
2.0 mm |
37 uL |
| THGMS-CM0161 |
16 wells |
4.0 mm |
1.0 mm |
18 uL |
 |
| THGMS-CM0162 |
1.5 mm |
27 uL |
| THGMS-CM0163 |
2.0 mm |
36 uL |
THGMS-CM0211 |
21 wellsMP |
3.0 mm |
1.0 mm |
13 uL |
 |
| THGMS-CM0212 |
1.5 mm |
20 uL |
| THGMS-CM0213 |
2.0 mm |
27 uL |
THGMS-CM0241 |
24 wells |
2.45 mm |
1.0 mm |
11 uL |
 |
| THGMS-CM0242 |
1.5 mm |
16 uL |
| THGMS-CM0243 |
2.0 mm |
22 uL |
THGMS-CM0301 |
30 wells |
1.7 mm |
1.0 mm |
7 uL |
 |
| THGMS-CM0302 |
1.5 mm |
11 uL |
| THGMS-CM0303 |
2.0 mm |
15 uL |
| THGMS-CPS101 |
1 + 1 well |
3 mm & 88 mm |
2.0 mm |
792 uL |
 |
| THGMS-CPM102 |
1 + 2 well |
3 mm & 43 mm |
2.0 mm |
27 uL & 387 uL |
 |
| THGMS-CPS102 |
 |
| THGMS-CPS202 |
2 + 2 well |
3 mm & 40 mm |
2.0 mm |
27 uL & 360 uL |
 |
| THGMS-CPM104 |
1 + 4 well |
3 mm & 20.5 mm |
2.0 mm |
27 uL & 184 uL |
 |
| THGMS-CPS104 |
 |
| THGMS-CPS204 |
2 + 4 well |
3 mm & 19 mm |
2.0 mm |
27 uL & 171 uL |
 |
| THGMS-CPM106 |
1 + 6 well |
3 mm & 13 mm |
2.0 mm |
27 uL & 117 uL |
 |
| THGMS-CPS106 |
 |
| THGMS-CPS206 |
2 + 6 well |
3 mm & 12 mm |
2.0 mm |
27 uL & 108 uL |
 |
| 08-09101 |
7 cm |
10 wells |
4.5 mm |
1.0 mm |
20 uL |
 |
| 08-09102 |
1.5 mm |
30 uL |
| 08-09103 |
2.0 mm |
40 uL |
| 08-09131 |
13 wells |
3 mm |
1.0 mm |
13 uL |
 |
| 08-09132 |
1.5 mm |
20 uL |
| 08-09133 |
2.0 mm |
27 uL |
| 08-09151 |
15 wellsMP |
2.8 mm |
1.0 mm |
12 uL |
 |
| 08-09152 |
1.5 mm |
18 uL |
| 08-09153 |
2.0 mm |
25 uL |
| 08-09161 |
16 wells |
2.5 mm |
1.0 mm |
11 uL |
 |
| 08-09162 |
1.5 mm |
16 uL |
| 08-09163 |
2.0 mm |
22 uL |
| 08-09201 |
20 wells |
1.7 mm |
1.0 mm |
7 uL |
 |
| 08-09202 |
1.5 mm |
11 uL |
| 08-09203 |
2.0 mm |
15 uL |
| 08-PS101 |
1 + 1 well |
3 mm & 58 mm |
2.0 mm |
522 uL |
 |
| 08-PM102 |
1 + 2 well |
3 mm & 28 mm |
2.0 mm |
27 uL & 250 uL |
 |
| 08-PS102 |
 |
| 08-PM104 |
1 + 4 well |
3 mm & 13 mm |
2.0 mm |
27 uL & 117 uL |
 |
| 08-PS104 |
 |
| 08-09101 |
3 cm |
4 wells |
mm |
1.5 mm |
uL |
 |
# Std. comb with Gelmariner, ready-to-use systems
* The sample loading volume is theoretically determined, based on a gel thickness of 5 mm and when the comb is 0.5 mm above the base of the tray.
Actual loading volumes may differ depending on gel thickness, distance of comb teeth from base of tray, loading skill and composition of loading buffer.
Combs stand
| Cat. No. |
Name and Description |
Unit |
Image |
| THGMS-CS0002 |
Comb stand with positioning pins and metal screws for adjusting comb height (for tray of width 10 cm) |
Piece |
 |
| 08-07870 |
Comb stand with positioning pins and metal screws for adjusting comb height (for tray of width 7 cm) |
Piece |
 |
Other Accessories
| Cat. No. |
Name and Description |
Unit |
Image |

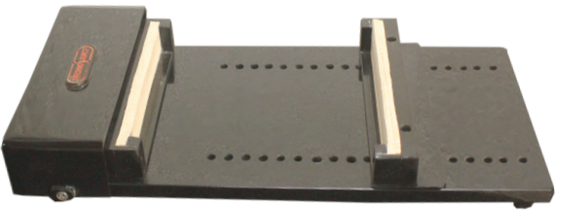

| THGMS-CC1020 |
Gel casting chamber for tray 10 cm (w) and varying length upto 20 cm |
Piece |
 |
| THC0S-CCSC02 |
Screws for gel casting chamber (2 No.) |
Packet |
 |
| THC0S-GS0920 |
Gel slicer, breakage resistant, 9.5 (w) x 20 (l) cm |
Piece |
 |
| THC0S-NC0001 |
Niche cleaner |
Piece |
 |
| TCC0S-LT2331 |
Penta-legged levelling table (21 x 31 cm) with spirit-level |
Set |
 |
| 65-08539 & 65-05042 |
LigoGel Tray LigoGel Comb |
Set |
 |
Replacement parts for Gelmariner
| Cat. No. |
Name and Description |
For use with |
Unit |
Image |
| TCC0S-CRD044 |
Electrical cords with male & female connectors designed for user safety |
All Gelmariners |
Pair |
 |
| THGMS-TNK001 |
Gelmariner tank. Replacement part for horizontal apparatus for DNA and protein separations, with male connectors mounted at an angle and unidirectional migration, for gel size 10 (w) x 15 (l) cm. |
THGMR-001015 |
Piece |
Image |
| THGMS-TNKR01 |
Gelmariner-R tank. Replacement part for horizontal apparatus for nucleic acid and protein separations, fabricated to tolerate cleaning reagents used in RNA analysis, with male connectors mounted at an angle and unidirectional migration. |
THGMR-R01015 |
Piece |
Image |
| THGMS-LD0001 |
Gelmariner-RC tank. Replacement part for horizontal apparatus for nucleic acid and protein separations, fabricated to tolerate cleaning reagents used in RNA analysis, with ports for buffer circulation and cooling of gel for fast electrophoresis, with male connectors mounted at an angle and unidirectional migration, for gel size 10 (w) x 15 (l) cm. |
THGMR-RC1015 |
Piece |
Image |
Visit these pages for additional information regarding Gelmariner, Gelmariner-R and Gelmariner-RC
Gelmariner - Horizontal Gel Electrophoresis Apparatus
For Midi Agarose gels.
|
