Download Greyhound
catalog
 pdf
| Cat. No. |
Model |
DNA & Protein separation |
RNA separation |
Ports for buffer circulation |
Gel Size
(cm) |
Unit |
Image |
| THGDR-001520 |
Greyhound |
Yes |
✖ |
✖ |
15 (w) x 20 (l) |
1 system |
 |

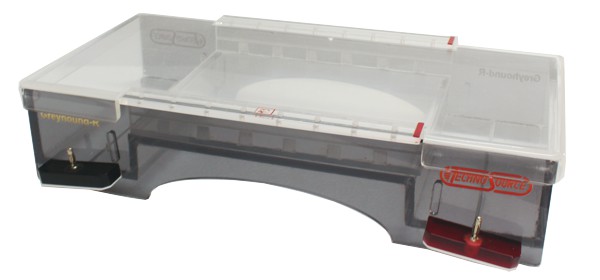

| THGDR-R01520 |
Greyhound-R |
Yes |
Yes |
✖ |
15 (w) x 20 (l) |
1 system |
 |
| THGDR-RC1520 |
Greyhound-RC |
Yes |
Yes |
Yes |
15 (w) x 20 (l) |
1 system |
|

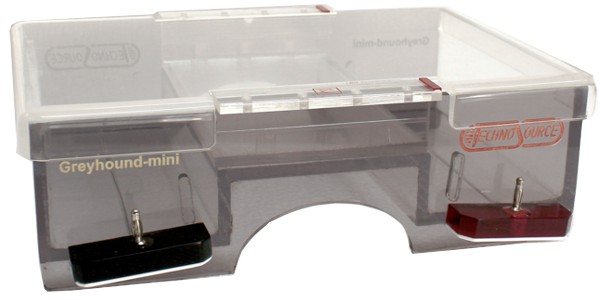

| THGDR-M01510 |
Greyhound-mini |
Yes |
✖ |
✖ |
15 (w) x 10 (l) |
1 system |
 |
| For list of components given along with the ready-to-use system please refer to page Greyhound |
Accessories for Greyhound
Gel trays
For Tray and Comb selection also refer to Greyhound Trays and Combs.
| Cat No. |
Gel width |
Gel length |
Opaque/ UVT |
Gel gripping |
Unit |
Image |
| THGDS-T01505 |
15 cm |
5 cm |
UV-Opaque |
No |
Piece |
 |
| THGDS-TU1505 |
UV-Transparent |
Yes |
Piece |
 |
| THGDS-T01510 |
10 cm |
UV-Opaque |
No |
Piece |
 |
| THGDS-TU1510 |
UV-Transparent |
Yes |
Piece |
 |
| THGDS-T01515 |
15 cm |
UV-Opaque |
No |
Piece |
 |
| THGDS-TU1515 |
UV-Transparent |
Yes |
Piece |
 |
| THGDS-T01520 |
20 cm |
UV-Opaque |
No |
Piece |
 |
| # THGDS-TU1520 |
UV-Transparent |
Yes |
Piece |
 |
| THGDS-T01525 |
25 cm |
UV-Opaque |
No |
Piece |
 |
| THGDS-TU1525 |
UV-Transparent |
Yes |
Piece |
 |
| THGMS-T01005 |
10 cm |
5 cm |
UV-Opaque |
No |
Piece |
 |
| THGMS-TU1005 |
UV-Transparent |
Yes |
Piece |
 |
| THGMS-T01010 |
10 cm |
UV-Opaque |
No |
Piece |
 |
| THGMS-TU1010 |
UV-Transparent |
Yes |
Piece |
 |
| THGMS-T01015 |
15 cm |
UV-Opaque |
No |
Piece |
 |
| THGMS-TU1015 |
UV-Transparent |
Yes |
Piece |
 |
| THGMS-T01020 |
20 cm |
UV-Opaque |
No |
Piece |
 |
| THGMS-TU1020 |
UV-Transparent |
Yes |
Piece |
 |
| THSLS-T00705 |
7 cm |
5 cm |
UV-opaque |
No |
Piece |
 |
| THSLS-TU0705 |
UV-Transparent |
Yes |
Piece |
 |
| THSLS-T00710 |
10 cm |
UV-Opaque |
No |
Piece |
 |
| THSLS-TU0710 |
UV-Transparent |
Yes |
Piece |
 |
| THSLS-T00715 |
15 cm |
UV-Opaque |
No |
Piece |
 |
| THSLS-T00715 |
UV-Transparent |
Yes |
Piece |
 |
| 08-03104 |
3 cm |
10 cm |
UV-Transparent |
Yes |
Piece |
 |
# Std. tray with Greyhound, ready-to-use systems
Combs
For Tray and Comb selection also refer to Greyhound Trays and Combs.
| Cat No. |
Fits tray of width |
No. of wells |
Well width |
Comb thickness |
Loading volume* |
Image |
| 09-09111 |
15 cm15 cm15 cm |
11 wells |
- mm |
1.0 mm |
- uL |
 |
| 09-09112 |
1.5 mm |
- uL |
| 09-09113 |
2.0 mm |
- uL |

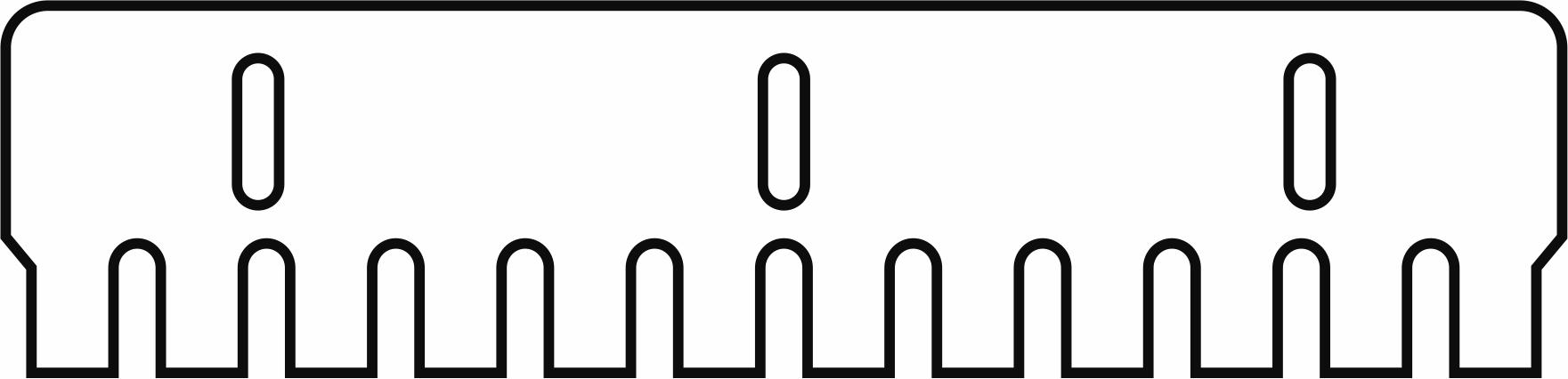

| THGDS-CM0121 |
12 wells |
11 mm |
1.0 mm |
49 uL |
 |
| THGDS-CM0122 |
1.5 mm |
74 uL |
| THGDS-CM0123 |
2.0 mm |
99 uL |
| THGDS-CM0171 |
17 wellsMP |
6 mm |
1.0 mm |
27 uL |
 |
| THGDS-CM0172 |
1.5 mm |
41 uL |
| THGDS-CM0173 |
2.0 mm |
54 uL |
| THGDS-CM0241 |
24 wells |
4 mm |
1.0 mm |
18 uL |
 |
| # THGDS-CM0242 |
1.5 mm |
27 uL |
| THGDS-CM0243 |
2.0 mm |
36 uL |
| THGDS-CM0281 |
28 wells |
3.2 mm |
1.0 mm |
14 uL |
 |
| THGDS-CM0282 |
1.5 mm |
22 uL |
| THGDS-CM0283 |
2.0 mm |
29 uL |
| THGDS-CM0331 |
33 wellsMP |
2.9 mm |
1.0 mm |
13 uL |
 |
| THGDS-CM0332 |
1.5 mm |
20 uL |
| THGDS-CM0333 |
2.0 mm |
26 uL |
| THGDS-CM0361 |
36 wells |
2.5 mm |
1.0 mm |
11 uL |
 |
| THGDS-CM0362 |
1.5 mm |
17 uL |
| THGDS-CM0363 |
2.0 mm |
23 uL |
| THGDS-CM0451 |
45 wells |
1.7 mm |
1.0 mm |
8 uL |
 |
| THGDS-CM0452 |
1.5 mm |
11 uL |
| THGDS-CM0453 |
2.0 mm |
15 uL |
| THGDS-CPS101 |
1 + 1 well |
3 mm & 138 mm |
2.0 mm |
1240 uL |
 |
| THGDS-CPM102 |
1 + 2 well |
3 mm & 68 mm |
2.0 mm |
27 uL & 610 uL |
 |
| THGDS-CPS102 |
 |
| THGDS-CPS202 |
2 + 2 well |
3 mm & 65.5 mm |
2.0 mm |
27 uL & 590 uL |
 |
| THGDS-CPM104 |
1 + 4 well |
3 mm & 33 mm |
2.0 mm |
27 uL & 280 uL |
 |
| THGDS-CPS104 |
 |
| THGDS-CPS204 |
2 + 4 well |
3 mm & 32 mm |
2.0 mm |
27 uL & 280 uL |
 |
| THGDS-CPM106 |
1 + 6 well |
3 mm & 21.5 mm |
2.0 mm |
27 uL & 190 uL |
 |
| THGDS-CPS106 |
 |
| THGDS-CPS206 |
2 + 6 well |
3 mm & 20.5 mm |
2.0 mm |
27 uL & 180 uL |
 |
| THGDS-CPM108 |
1 + 8 well |
3 mm & 15.5 mm |
2.0 mm |
27 uL & 140 uL |
 |
| THGDS-CPS108 |
 |
| THGDS-CPS208 |
2 + 8 well |
3 mm & 15 mm |
2.0 mm |
27 uL & 135 uL |
 |
| THGDS-CPM110 |
1 + 10 well |
3 mm & 12 mm |
2.0 mm |
27 uL & 108 uL |
 |
| THGDS-CPS110 |
 |
| THGDS-CPS210 |
2 + 10 well |
3 mm & 11.5 mm |
2.0 mm |
27 uL & 103 uL |
 |
| Fits tray of width |
No. of wells |
Well width |
Comb thickness |
Loading volume* |
Cat No. |
Image |
| THGMS-CM0071 |
10 cm 10 cm10 cm |
7 wells |
mm |
1.0 mm |
uL |
 |
| THGMS-CM0072 |
1.5 mm |
uL |
| THGMS-CM0073 |
2.0 mm |
uL |
| THGMS-CM0101 |
10 wellsMP |
6.0 mm |
1.0 mm |
27 uL |
 |
| THGMS-CM0102 |
1.5 mm |
40 uL |
| THGMS-CM0103 |
2.0 mm |
54 uL |
| THGMS-CM0151 |
15 wells |
mm |
1.0 mm |
uL |
 |
| THGMS-CM0162 |
1.5 mm |
uL |
| THGMS-CM0163 |
2.0 mm |
uL |
| THGMS-CM0161 |
16 wells |
4.0 mm |
1.0 mm |
18 uL |
 |
| THGMS-CM0162 |
1.5 mm |
27 uL |
| THGMS-CM0163 |
2.0 mm |
36 uL |
THGMS-CM0211 |
21 wellsMP |
3.0 mm |
1.0 mm |
13 uL |
 |
| THGMS-CM0212 |
1.5 mm |
20 uL |
| THGMS-CM0213 |
2.0 mm |
27 uL |
THGMS-CM0241 |
24 wells |
2.45 mm |
1.0 mm |
11 uL |
 |
| THGMS-CM0242 |
1.5 mm |
16 uL |
| THGMS-CM0243 |
2.0 mm |
22 uL |
THGMS-CM0301 |
30 wells |
1.7 mm |
1.0 mm |
7 uL |
 |
| THGMS-CM0302 |
1.5 mm |
11 uL |
| THGMS-CM0303 |
2.0 mm |
15 uL |
| THGMS-CPS101 |
1 + 1 well |
3 mm & mm |
2.0 mm |
uL |
 |
| THGMS-CPM102 |
1 + 2 well |
3 mm & mm |
2.0 mm |
27 uL & uL |
 |
| THGMS-CPS102 |
 |
| THGMS-CPS202 |
2 + 2 well |
3 mm & mm |
2.0 mm |
27 uL & uL |
 |
| THGMS-CPM104 |
1 + 4 well |
3 mm & mm |
2.0 mm |
27 uL & uL |
 |
| THGMS-CPS104 |
 |
| THGMS-CPS204 |
2 + 4 well |
3 mm & mm |
2.0 mm |
27 uL & uL |
|
| THGMS-CPM106 |
1 + 6 well |
3 mm & mm |
2.0 mm |
27 uL & uL |
 |
| THGMS-CPS106 |
 |
| THGMS-CPS206 |
2 + 6 well |
3 mm & mm |
2.0 mm |
27 uL & uL |
 |
| Cat No. |
Fits tray of width |
No. of wells |
Well width |
Comb thickness |
Loading volume* |
Image |
| THSLS-CM0101 |
7 cm |
10 wells |
4.5 mm |
1.0 mm |
20 uL |
 |
| THSLS-CM0102 |
1.5 mm |
30 uL |
| THSLS-CM0103 |
2.0 mm |
40 uL |
| THSLS-CM0131 |
13 wells |
3 mm |
1.0 mm |
13 uL |
 |
| THSLS-CM0132 |
1.5 mm |
20 uL |
| THSLS-CM0133 |
2.0 mm |
27 uL |
| THSLS-CM0151 |
15 wellsMP |
2.8 mm |
1.0 mm |
12 uL |
 |
| THSLS-CM0152 |
1.5 mm |
18 uL |
| THSLS-CM0153 |
2.0 mm |
25 uL |
| THSLS-CM0161 |
16 wells |
2.5 mm |
1.0 mm |
11 uL |
 |
| THSLS-CM0162 |
1.5 mm |
16 uL |
| THSLS-CM0163 |
2.0 mm |
22 uL |
| THSLS-CM0201 |
20 wells |
1.7 mm |
1.0 mm |
7 uL |
 |
| THSLS-CM0202 |
1.5 mm |
11 uL |
| THSLS-CM0203 |
2.0 mm |
15 uL |
| THSLS-CPS101 |
1 + 1 well |
3 mm & 58 mm |
2.0 mm |
522 uL |
 |
| THSLS-CPM102 |
1 + 2 well |
3 mm & 28 mm |
2.0 mm |
27 uL & 250 uL |
 |
| THSLS-CPS102 |
 |
| THSLS-CPM104 |
1 + 4 well |
3 mm & 13 mm |
2.0 mm |
27 uL & 117 uL |
 |
| THSLS-CPS104 |
 |
| Cat No. |
Fits tray of width |
No. of wells |
Well width |
Comb thickness |
Loading volume* |
Image |
| THSLS-CM0101 |
3 cm |
4 wells |
mm |
1.5 mm |
uL |
 |
# Std. comb with Greyhound, ready-to-use systems
* The sample loading volume is theoretically determined, based on a gel thickness of 5 mm and when the comb is 0.5 mm above the base of the tray.
Actual loading volumes may differ depending on gel thickness, distance of comb teeth from base of tray, loading skill and composition of loading buffer.
Combs stand
| Cat. No. |
Name and Description |
Unit |
Image |
| THGDS-CS0003 |
Comb stand with positioning pins and metal screws for adjusting comb height (for tray of width 15 cm) |
Piece |
 |
| THGMS-CS0002 |
Comb stand with positioning pins and metal screws for adjusting comb height (for tray of width 10 cm) |
Piece |
 |
| THSLS-CS0002 |
Comb stand with positioning pins and metal screws for adjusting comb height (for tray of width 7 cm) |
Piece |
 |
Other Accessories
| Cat. No. |
Name and Description |
Unit |
Image |

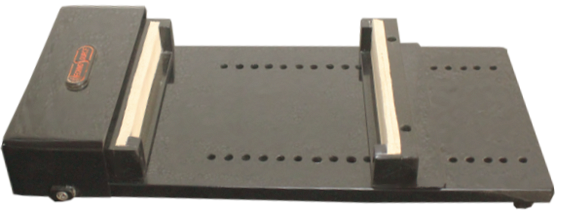

| THGDS-CC1525 |
Gel casting chamber for tray 15 cm (w) and varying length upto 25 cm |
Piece |
 |
| THGDS-CGA015 |
Gel casting gates (Aluminium, 2 nos.) for Greyhound. |
Pair |
|
| THC0S-CCSC02 |
Screws for gel casting chamber (2 No.) [for Legacy models] |
Packet |
 |
| THC0S-GS1425 |
Gel slicer, breakage resistant, 14.5 (w) x 25 (l) cm |
Piece |
 |
| THC0S-NC0001 |
Niche cleaner |
Piece |
 |
| TCC0S-LT2845 |
Penta-legged levelling table (28 x 45 cm) with spirit-level |
Set |
 |
| THLGS-LG0001 & THLGS-CM0405 |
LigoGel Tray LigoGel Comb |
Set |
 |
Replacement parts for Greyhound
| Cat. No. |
Name and Description |
For use with |
Unit |
Image |
| TCC0S-CRD044 |
Electrical cords with male & female connectors designed for user safety |
All Greyhounds |
Pair |
 |

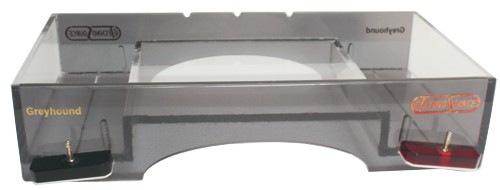

| THGDS-TNK001 |
Greyhound tank. Replacement part for horizontal apparatus for DNA and protein separations with male connectors mounted at an angle, and unidirectional migration, for gel size 15 (w) x 20 (l) cm. |
THGDR-001520 |
Pair |
 |

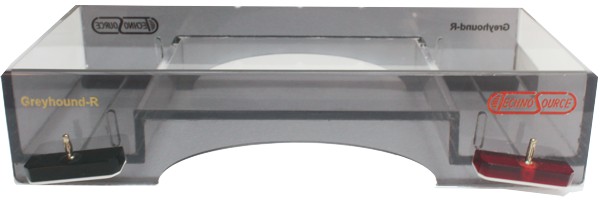

| THGDS-TNKR01 |
Greyhound-R tank. Replacement part for horizontal apparatus for nucleic acid and protein separations: fabricated to tolerate cleaning reagents used in RNA analysis, with male connectors mounted at an angle and unidirectional migration, for gel size 15 (w) x 20 (l) cm. |
THGDR-R01520 |
Pair |
 |
| THGDS-TNKRC1 |
Greyhound-RC tank. Replacement part for horizontal apparatus for nucleic acid and protein separations: fabricated to tolerate cleaning reagents used in RNA analysis, with ports for buffer circulation and cooling of gel for fast electrophoresis, with male connectors mounted at an angle and unidirectional migration, for gel size 15 (w) x 20 (l) cm. |
THGDR-RC1520 |
Pair |
|

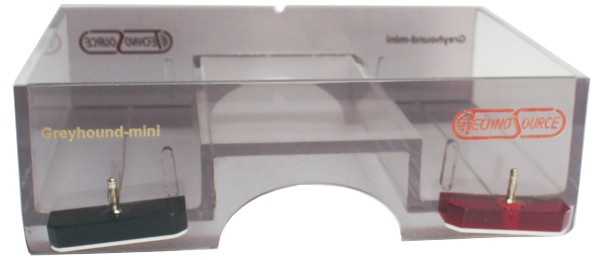

| THGDS-TNKM01 |
Greyhound-mini tank. Replacement part for horizontal apparatus for DNA and protein separations with male connectors mounted at an angle, and unidirectional migration, for gel size 15 (w) x 10 (l) cm. |
THGDR-M01510 |
Pair |
 |

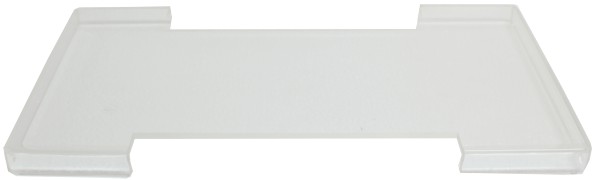

| THGDS-LD0001 |
Greyhound lid. Replacement part for horizontal apparatus for DNA and Protein Separation. |
THGDR-001520 &
THGDR-R01520 &
THGDR-RC1520 |
Pair |
 |

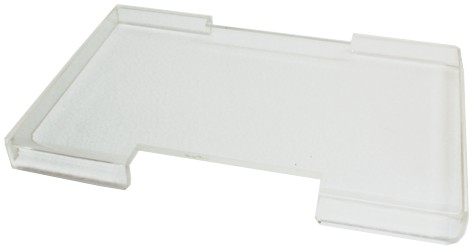

| THGDS-LDM001 |
Greyhound-mini lid. Replacement part for horizontal apparatus for DNA and Protein Separation. |
THGDR-M01510 |
Pair |
 |
Visit these pages for additional information regarding Greyhound, Greyhound-R, Greyhound-RC and Greyhound-mini
Greyhound - Horizontal Gel Electrophoresis Apparatus
For Maxi Agarose gels.
|
