TechnoSource > Products > Verticals> Minikin> Minikin Ordering
Minikin
pdf
Equipment
| Cat No. | Model | Gel width X Gel length | Casting Stand | Migration |
| TVMNR-US1012 | Minikin | 10 x 12 cm | No | Uni-directional |
| TVMNR-UC1012 # | Minikin | 10 x 12 cm | Yes | Uni-directional |
Minikin Accessories
Combs
| Cat No. | No of wells | Approx loading vol. in µL/well | Well width (in mm) |
Comb thickness (in mm) | Qty. | Image |

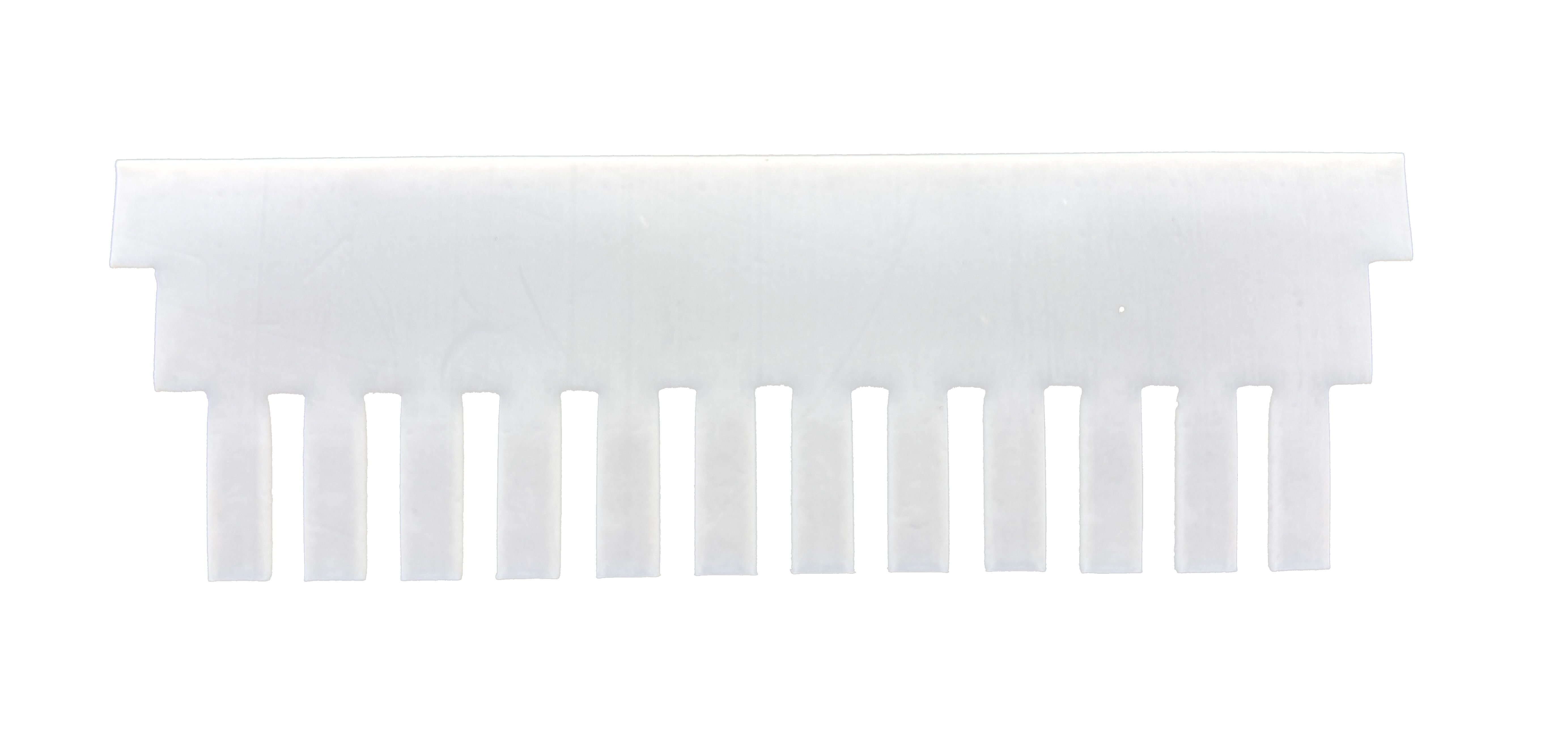

| TVMNS-CMF121* | 12 | 75 µL | Well width | 1 | 1 |  |
| TVMNS-CMF122 | 12 | 112 µL | Well width | 1.5 | 1 |  |
| TVMNS-CMF161 | 16 | 45 µL | Well width | 1 | 1 |  |

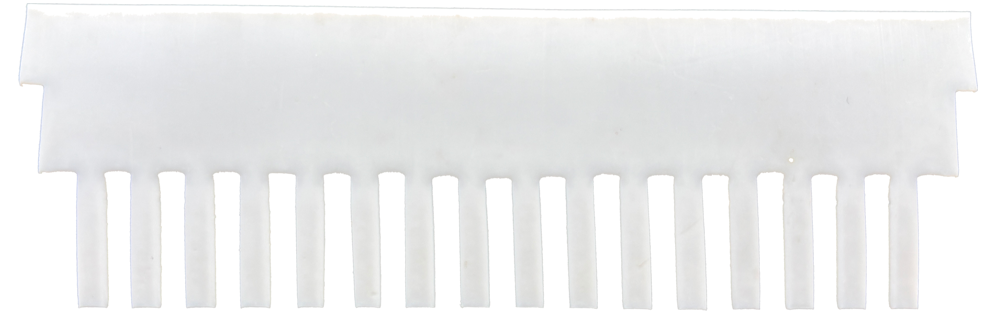

| TVMNS-CMF162 | 16 | 66 µL | Well width | 1.5 | 1 |  |
Comb material - PTFE Well depth of all combs - 15 mm
Spacers
| Cat No. | Type | For use with | Spacer length (in cm) |
Spacer thickness (in mm) |
Qty. | Image |

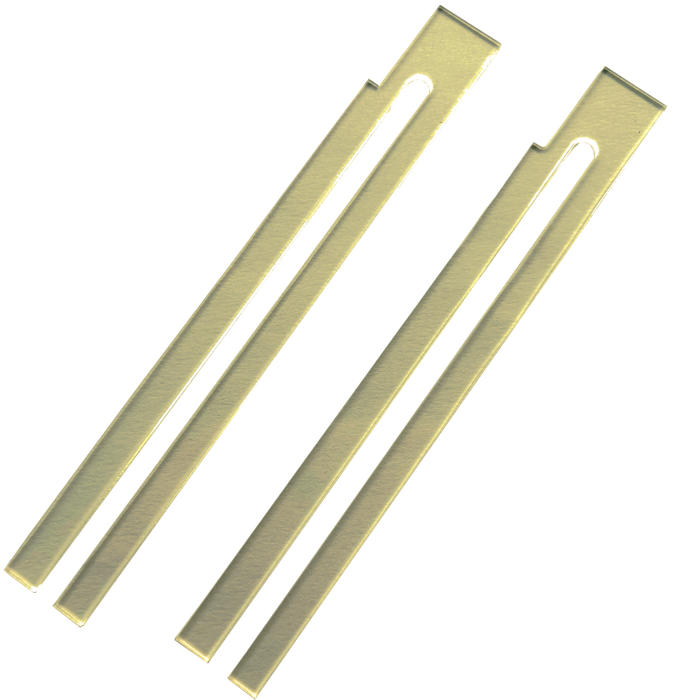

| TVMNS-SPS151 | Slotted | In situ casting | 15.5 | 1 | 2 pairs |  |

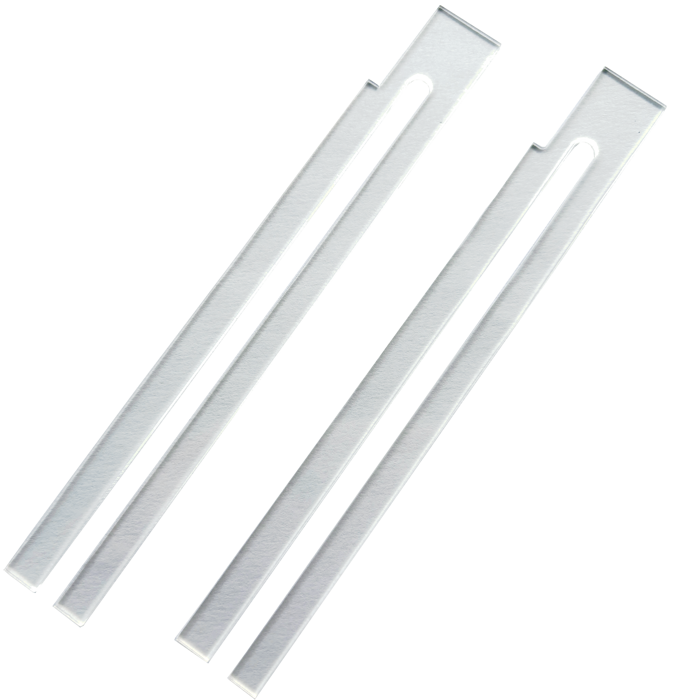

| TVMNS-SPS152* | Slotted | In situ casting | 15.5 | 1.5 | 2 pairs |  |

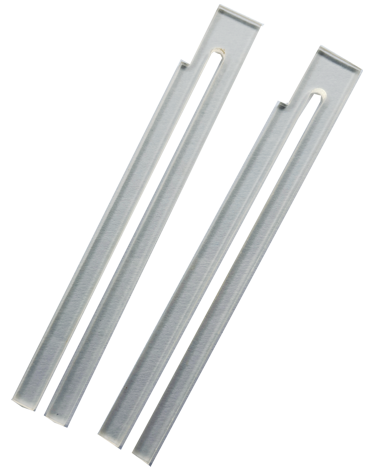

| TVMNS-SPS154 | Preparative, slotted | In situ casting | 15.5 | 3 | 2 pairs |  |
| TVMNS-SPP121 | Gel partitioning, slotted | In situ casting | 15.5 | 1 | 2 pcs | Image |
| TVMNS-SPP122 | Gel partitioning, slotted | In situ casting | 15.5 | 1.5 | 2 pcs | Image |

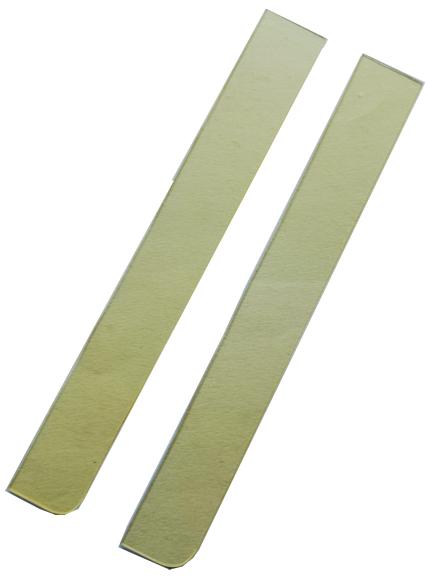

| TVMNS-SPR151 | Plain with one corner rounded | Casting stand | 12 | 1 | 2 pairs |  |

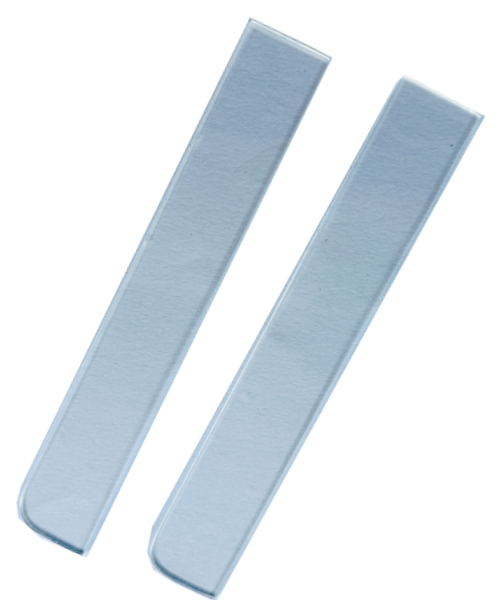

| TVMNS-SPR152^ | Plain with one corner rounded | Casting stand | 12 | 1.5 | 2 pairs |  |
^ - This part comes along with our ready-to-use system Cat No. TVMNR-UC1012
Spacer width - 2 cm Spacer material - PMMA
Cassette plates (gel plates)
| Cat No. | Category | Description | Type of casting | Compatible spacers | Qty. | Image |
| TVMNS-GNRS14* | Notched & Rectangular (Glass) | Square bottom | In situ casting or Casting stand TVMNS-CS0BC0 |
Slotted TVMNS-SPS151 TVMNS-SPS152 TVMNS-SPS154 TVMNS-SPP121 TVMNS-SPP122 |
4 plates (2 of each) |
Image |
| TVMNS-GNRR14^ | Notched & Rectangular (Glass) | Rounded bottom | Casting stands TVMNS-CS0VG4 TVMNS-CS0DG2 TVMNS-CS0FG4 |
Rounded TVMNS-SPR151 TVMNS-SPR152 |
4 plates (2 of each) |
Image |
| TVMNS-G0RS14 | Rectangular (Glass) | Square bottom | In situ casting or Casting stand TVMNS-CS0BC0 |
Slotted TVMNS-SPS151 TVMNS-SPS152 TVMNS-SPS154 TVMNS-SPP121 TVMNS-SPP122 |
4 plates | Image |
| TVMNS-G0RR14 | Rectangular (Glass) | Rounded bottom | Casting stands TVMNS-CS0VG4 TVMNS-CS0DG2 TVMNS-CS0FG4 |
Rounded TVMNS-SPR151 TVMNS-SPR152 |
4 plates | Image |
| TVMNS-FNRS12 | Notched & Rectangular (Fibre-glass & glass) |
Square bottom | In situ casting or Casting stand TVMNS-CS0BC0 |
Slotted TVMNS-SPS151 TVMNS-SPS152 TVMNS-SPS154 TVMNS-SPP121 TVMNS-SPP122 |
4 plates (2 of each) |
Image |
| TVMNS-FNRR12 | Notched & Rectangular (Fibre-glass & glass) |
Rounded bottom | Casting stands TVMNS-CS0VG4 TVMNS-CS0DG2 TVMNS-CS0FG4 |
Rounded TVMNS-SPR151 TVMNS-SPR152 |
4 plates (2 of each) |
Image |
^ - This part comes along with our ready-to-use system Cat No. TVMNR-UC1012
Plate size - 14 (w) x 13 (l) cm For gel size - 10 (w) x 12 (l) cm Plate thickness - 2 mm

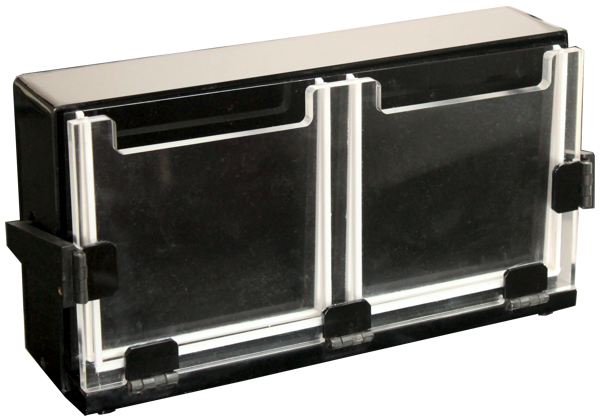

Gel casting stand - for tape free sealing, using agarose and binder clips
| Cat No. | Type | Compatible with spacers |
Number of gel cast | Gel thickness | Qty. | Image |
| TVMNS-CS0BC0 | Variable gel no., variable thickness using agarose for sealing |
Slotted spacers TVMNS-SPS151 TVMNS-SPS152 TVMNS-SPS154 TVMNS-SPP121 TVMNS-SPP122 |
1 or 2 | 1/ 1.5 mm | 1 unit | Image |
Gel casting stand - for tape free, agarose free sealing
| Cat No. | Type | Compatible with gasket |
Compatible with spacers |
Number of gel cast | Gel thickness | Qty. | Image |
| TVMNS-CS0VG4# | Variable gel no., variable thickness |
C shaped gaskets TVMNS-CSGSG1 TVMNS-CSGSG2 TVMNS-CS0DG2 TVMNS-CSGDG2 |
Rounded Spacers TVMNS-SPR151 TVMNS-SPR152 |
1, 2, 3 or 4 | 1/ 1.5 mm | 1 unit |  |
| TVMNS-CS0DG2 | Single gel, variable thickness |
C shaped gaskets TVMNS-CSGSG1 TVMNS-CSGSG2 |
Rounded Spacers TVMNS-SPR151 TVMNS-SPR152 |
2 | 1/ 1.5 mm | 1 unit | Image |
| TVMNS-CS0FG4 | Dual gel, variable thickness |
with C shaped gaskets TVMNS-CS0DG2 TVMNS-CSGDG2 |
Rounded Spacers TVMNS-SPR151 TVMNS-SPR152 |
4 | 1/ 1.5 mm | 1 unit | Image |
Gel casting gaskets (C shaped gaskets)
For tape free & agarose free sealing & gel casting| Cat No. | For use with casting stand of Cat no. | Number of gel cast per gasket | Thickness of gel cast | Compatible rounded spacers | Qty. | Image |
| TVMNS-CSGSG1 | TVMNS-CS0VG4 & TVMNS-CS0DG2 |
Single | 1 mm | TVMNS-SPR151 | 2 nos. | Image |
| TVMNS-CSGSG2^ | TVMNS-CS0VG4 & TVMNS-CS0DG2 |
Single | 1.5 mm | TVMNS-SPR152 | 2 nos. | Image |
| TVMNS-CS0DG2 | TVMNS-CS0VG4 & TVMNS-CS0FG4 |
Dual | 1 mm | TVMNS-SPR151 | 2 nos. | Image |
| TVMNS-CSGDG2 | TVMNS-CS0VG4 & TVMNS-CS0FG4 |
Dual | 1.5 mm | TVMNS-SPR152 | 2 nos. | Image |
Miscellaneous
| Cat No. | Item | Description | For use with | Qty. | Image |

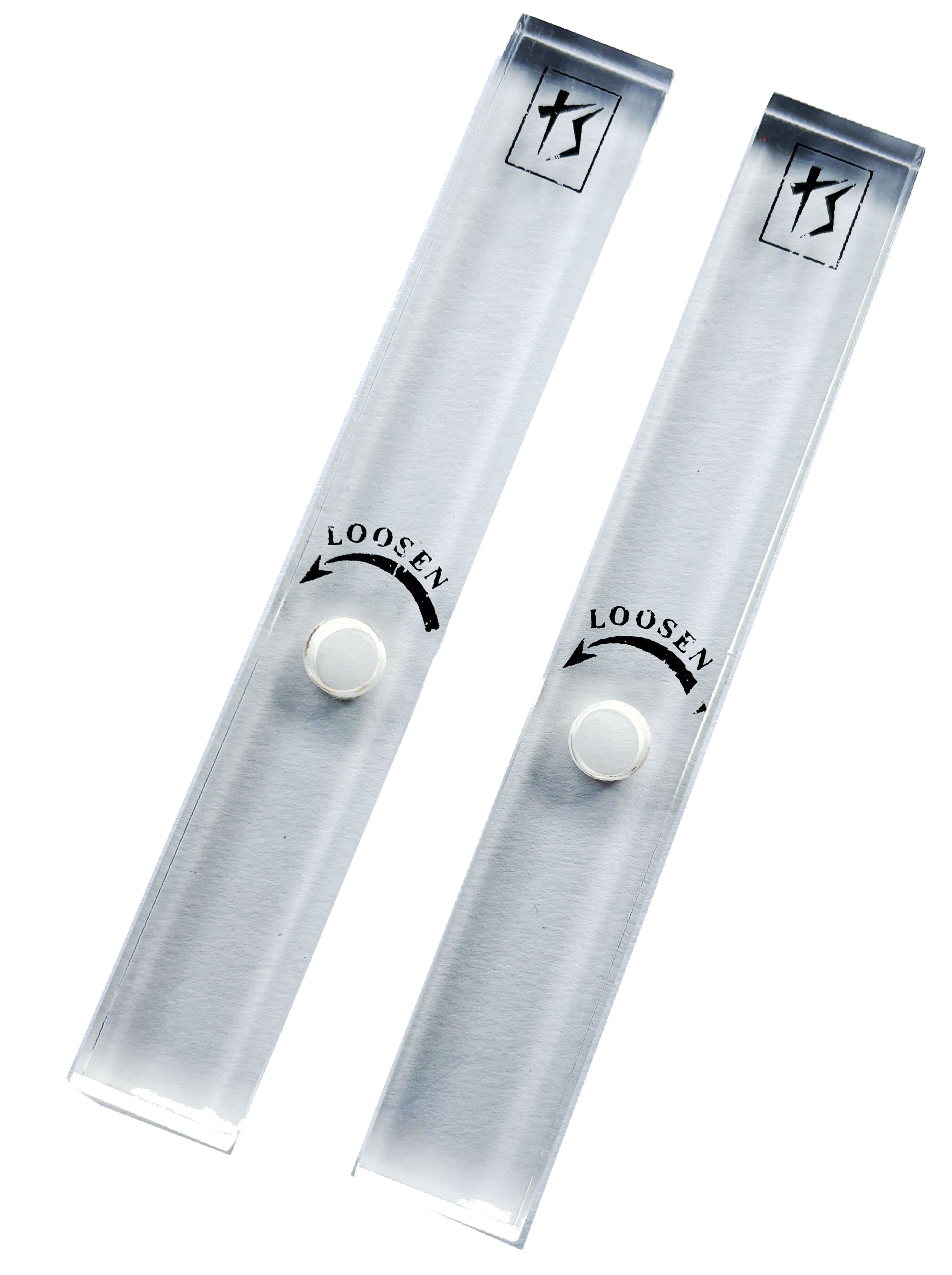

| TVMNS-CL0131* | Clamps for gel partitioning spacers 13 (l) cm with screws | To use with gel partitioning spacers only | All Minikins | 2 pcs | Image |
| TVMNS-DAM002 | Acrylic dam | Place as dummy plate when running a single gel | All Minikins | 1 unit | Image |
| TVMNS-GD1012 | Gel-detacher for Minikin | To detach gel from the cassette | All Minikins | 1 unit | Image |
| TVMNS-GPS004 | Glass plate stand | Stand for three plates | All Minikins | 1 unit | Image |
| TVMNS-BS0002 | Buffer savers | To insert in the anodic buffer chamber | All Minikins | 2 pcs | Image |

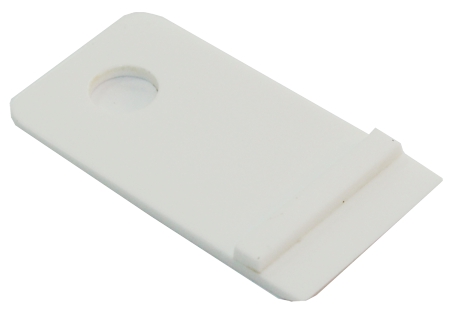

| TVC0S-GS0W01 | Gel-sandwich opener | To separate out the gel cassette after the gel run | All Minikins | 1 unit |  |
| TVC0S-ADS001 | Agarose dispenser for 1 mm spacer | For filling slot in slotted spacers of 1 mm | Minikin without casting stand | 1 unit |  |
| TVC0S-ADS002^ | Agarose dispenser for 1.5 mm spacer | For filling slot in slotted spacers of 1.5 mm | Minikin without casting stand | 1 unit | |
| TCC0S-CRDG44* | Electrical cords | With gold coated male & female connectors (to connect to all standard power supplies) | All Minikins | 1 pair |  |

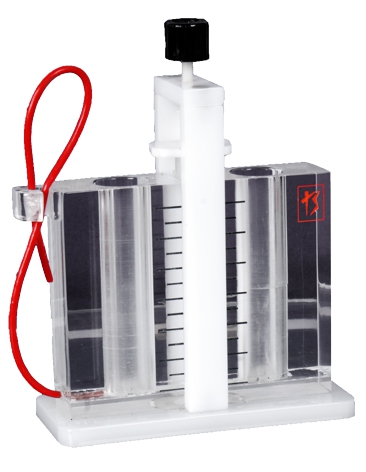

| TVC0S-GM1414 | Gradient Mixer | Triple barrel & plunging stopper. Vol per chamber 14 mL. | All Minikins | 1 unit |  |
| TCC0S-LT2121 | Levelling table | Penta-legged with spirit level (21 x 21 cm) | All Minikins | 1 unit | Image |
^ - This part comes along with our ready-to-use system Cat No. TVMNR-UC1012
Replacements
| Cat No. | Part | For use with | Qty. | Image |
| TVMNS-CL0130 | Clamps 13 (l) cm with screws | All Minikins | 2 pcs |  |
| TVMNS-SC0006 | Screws for clamps | All Minikins | 6 pcs | Image |
| TVMNS-SGCEUT | Resilient silicone gasket for CEU | All Minikins | 2 nos | Image |

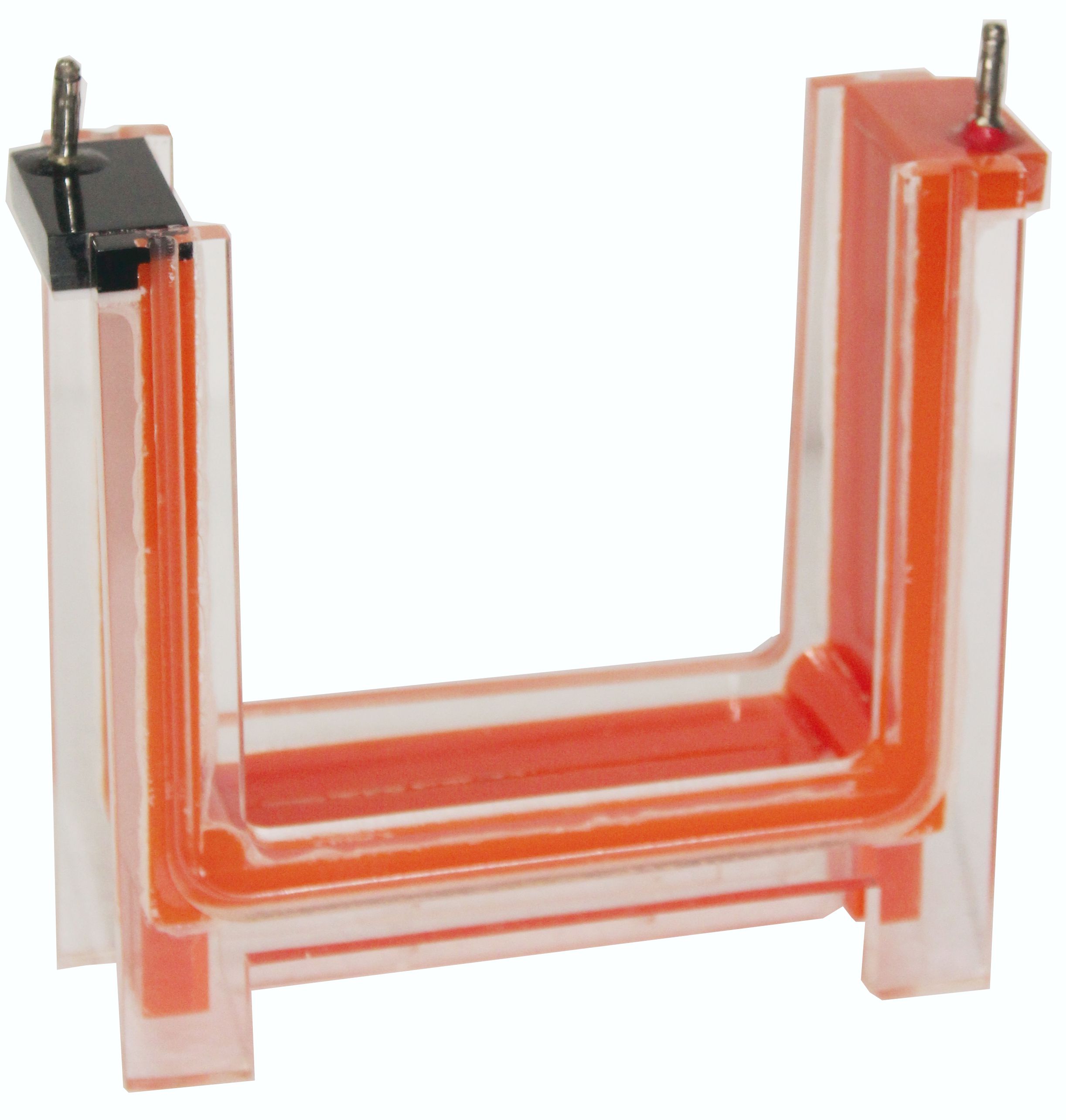

| TVMNS-CEUU01 | Minikin, CEU | All Minikins | 1 unit |  |

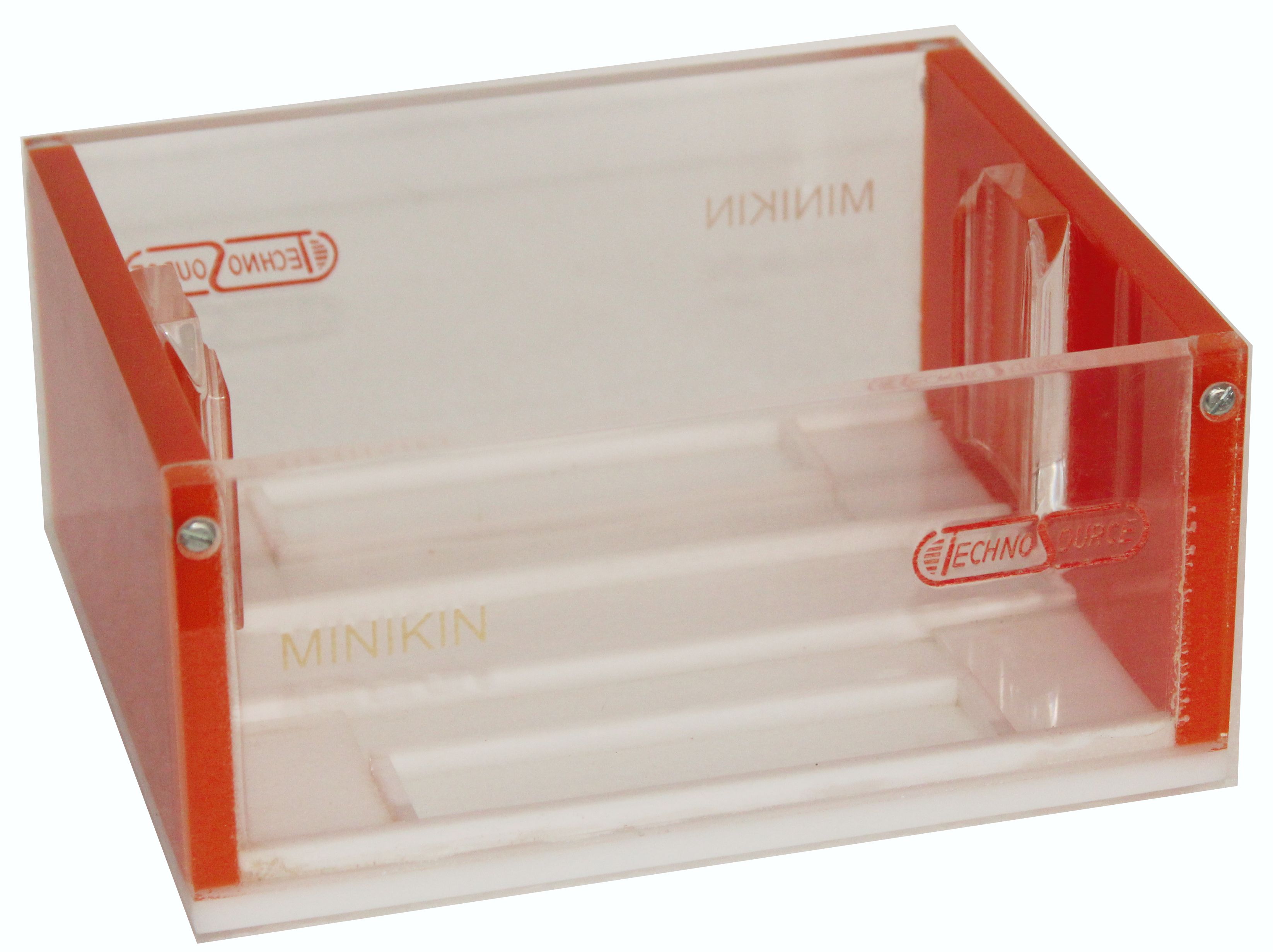

| TVMNS-TNKU01 | Minikin, Tank | All Minikins | 1 unit |  |

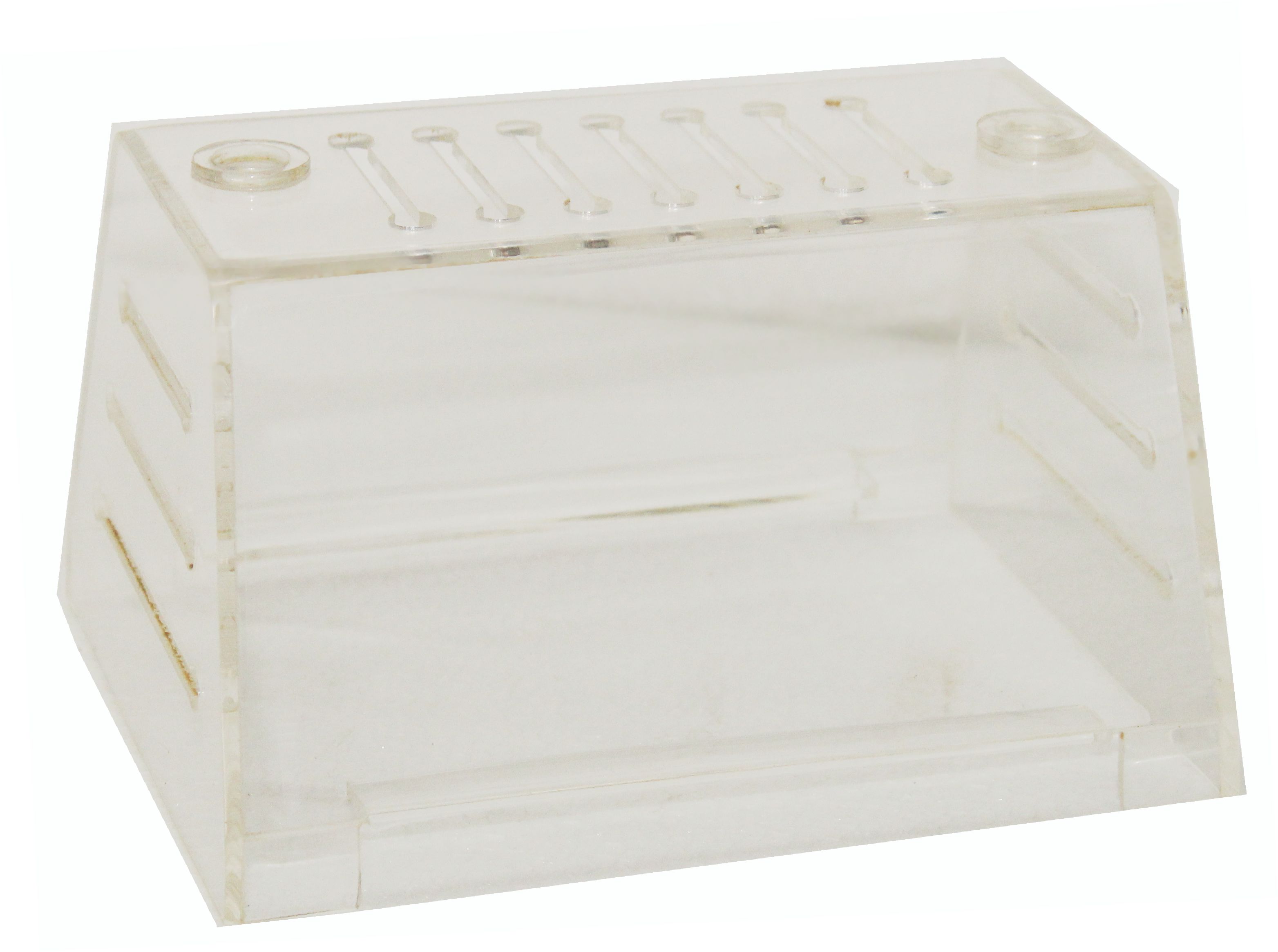

| TVMNS-LD0001 | Minikin, Lid | All Minikins | 1 unit |  |
